7.5 Kw Corrugated Sheet Metal Rolling Equipment With 4 - 8 M/Min Forming Speed

7.5 Kw Corrugated Sheet Metal Rolling Equipment With 4 - 8 M / Min Forming Speed

Quick Detail:
The machine is for continuously roll forming and pressing step tiles on series of product profile. The length can be set up or unlimited and the depth of each step is from 10 to 30mm adjustable.
This roofing tile roll forming line consists of hydraulic single head type uncoiler, roll forming main machine, hydraulic forming tile machine, hydraulic automatic cutting machine, products run out table, PLC automatic control cabinet.
Composition of Machine
Roll forming main machine……………………………1 unit
Cutting system…………………………………….…..1 unit
Pressing system…………………………………….…1 unit
Manual de-coiler……………………………………… 1 unit
Control panel…………………………………………..1 unit
Hydraulic station…………………………………… …1 unit
Manual out table……………………… ……………….2 unit
Spare tools……………………………………………...one box

Applications:
The colored steel tiles produced by this line look beautiful, elegant and noble. They are widely used as the roof of garden-like factory, hotel, exhibition center, villa, civil construction, etc.
Specifications:
1: Coil width: up to profiles
2: Working speed: 4-8 m/min
3: Roll station: 18-24 stations

4: Material of roller: 45# steel, polished and coated with chrome
5: Material of main shaft:45﹟forge steel diameter roller: Ф75mm
6: Main power: 7.5 kw
7: Forming thickness: 0.3mm—0.8mm color steel
8: Transmission: by chain 1.2 inch single line
9: Press system: adopt Cr12 material
10: Size of machine: about 9500x1600x1200(mm) L x W x H
11: Weight: about 8000Kgs
12: Color: blue
13: Seller will provide material to test machine, the end product should be up to 3-5m at most. When the product is same as signed produce, seller will stop to test the machine.
14: Machine adopt new station (such station is very strong and the life is more long)
15: Machine should be have four 350mm height legs (joint by screw)
16: Feeding and guide: adopt 45# material, and it is east to adjust the feeding size
17: Complete machine adopt cover: it is insure operator’s safe.
18: Cutting:
(1) Hydraulic cutting
(2) Cutting after forming: Cut the sheet after roll forming to required length
(3) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4) Material of blade: Cr12with heat treatment
(5) Length measuring: Automatic length measuring
(6) Tolerance of length: 3m +/- 1.5mm

Technological Process
Decoiling—feeding and guide —roll forming----press---cut to length—product packing manual

roll forming equipment

roof tile roll forming machine

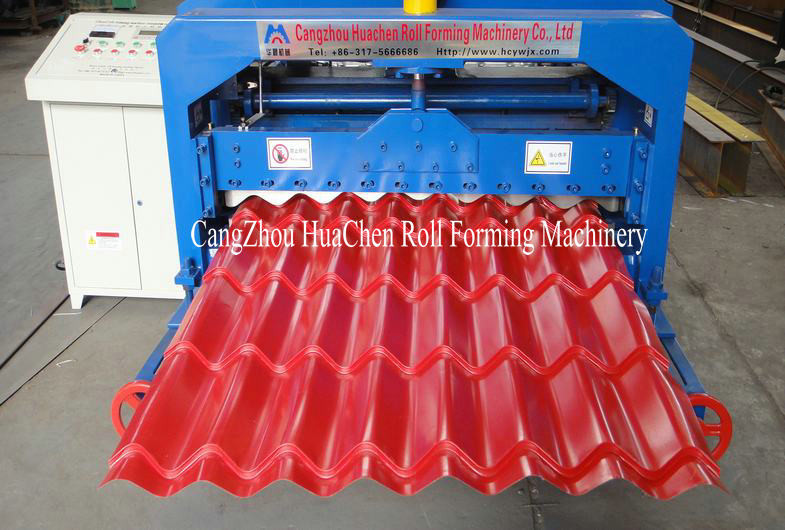

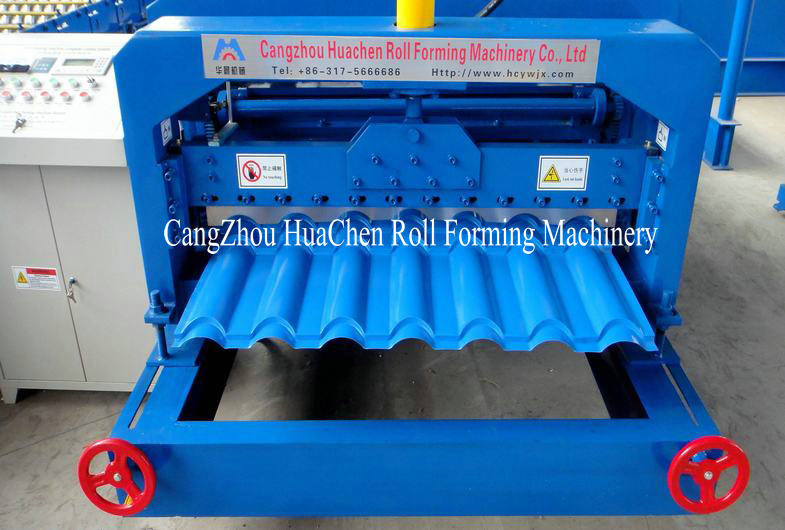

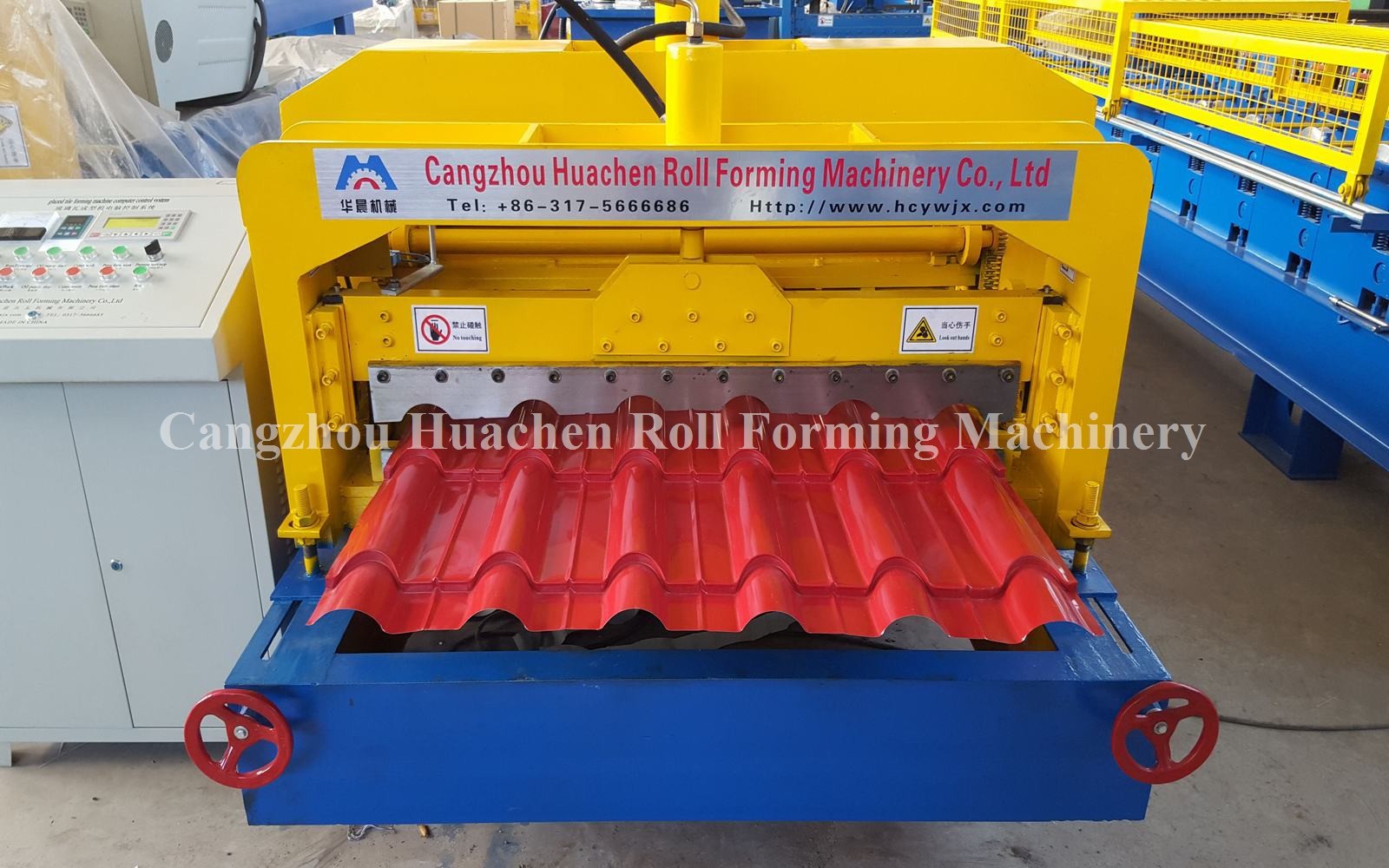

7.5 Kw Corrugated Sheet Metal Rolling Equipment With 4 - 8 M/Min Forming Speed Images
